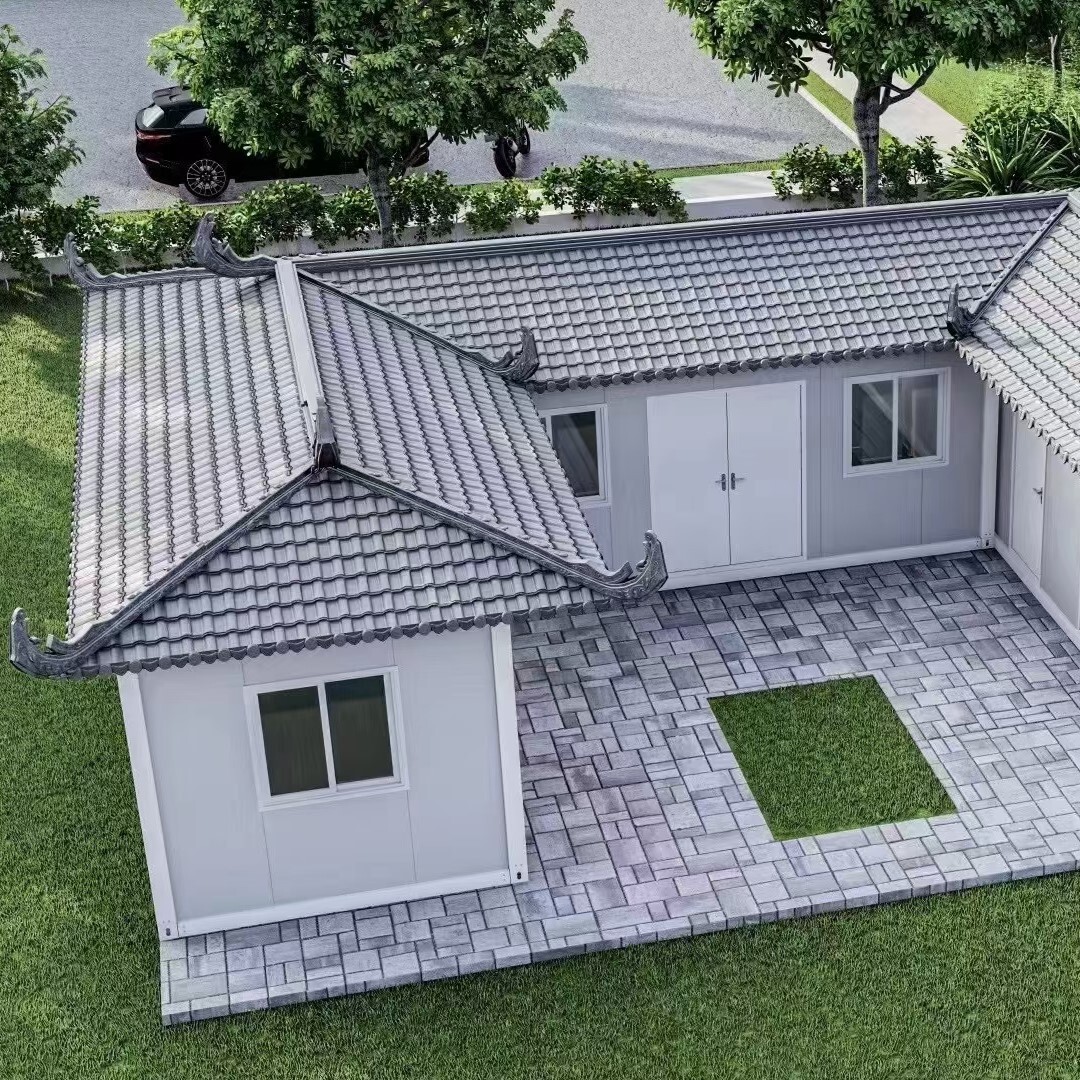

Z Type Foldable House

Name: Z Type Foldable House
SKU: 0



Phone：+86 15335742527



Email: eaststeelcn@gmail.com



Whatsapp: +86 15335742527

Inquiry Now

PRODUCT DESCRIPTION

The folding container house is an innovative temporary or semi-permanent living and working space product manufactured through modular design and folding technology.

It has significant features such as high space utilization, convenient transportation and installation, good thermal insulation performance and structural stability.

It is made of high-strength materials and specially designed to be folded and unfolded quickly, meeting people's life and work needs in various scenarios.

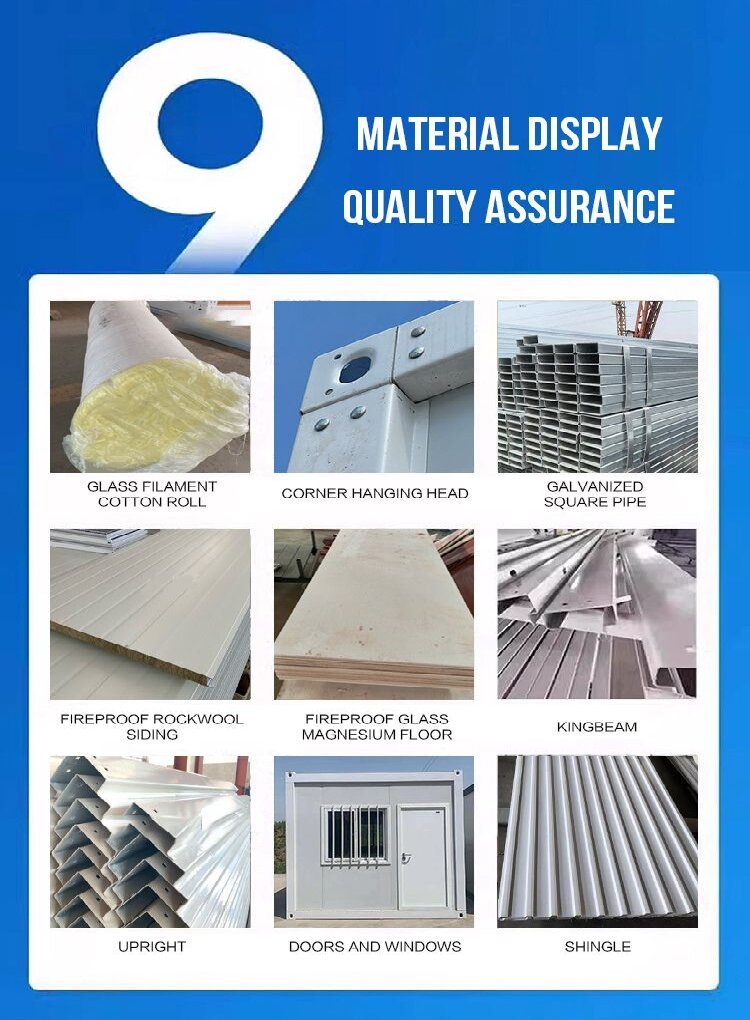

Specifications and Parameters:

Structural	high-quality hot-rolled Q235 galvanized steel
Roof	steel beam, rock wool sandwich panel, corrugated color steel ceiling
Wall	color-coated galvanized steel plate, foam, rock wool
Door and window	plastic steel, aluminum alloy or customization
Color	white, wood grain or customization
Size	585024302540mm or customization

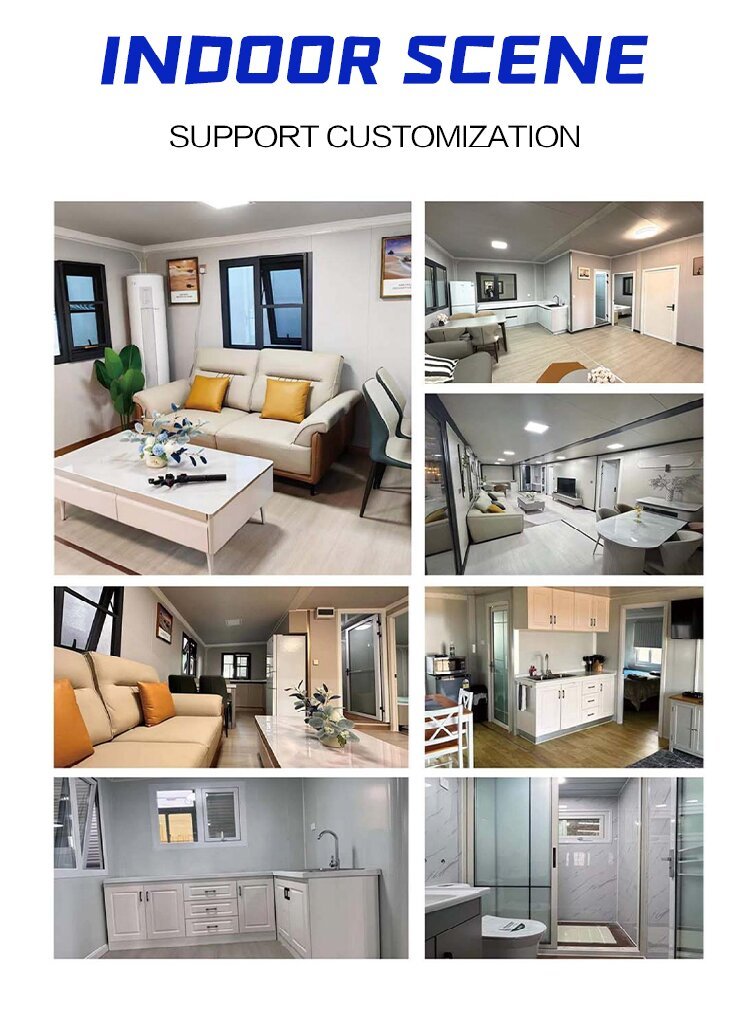

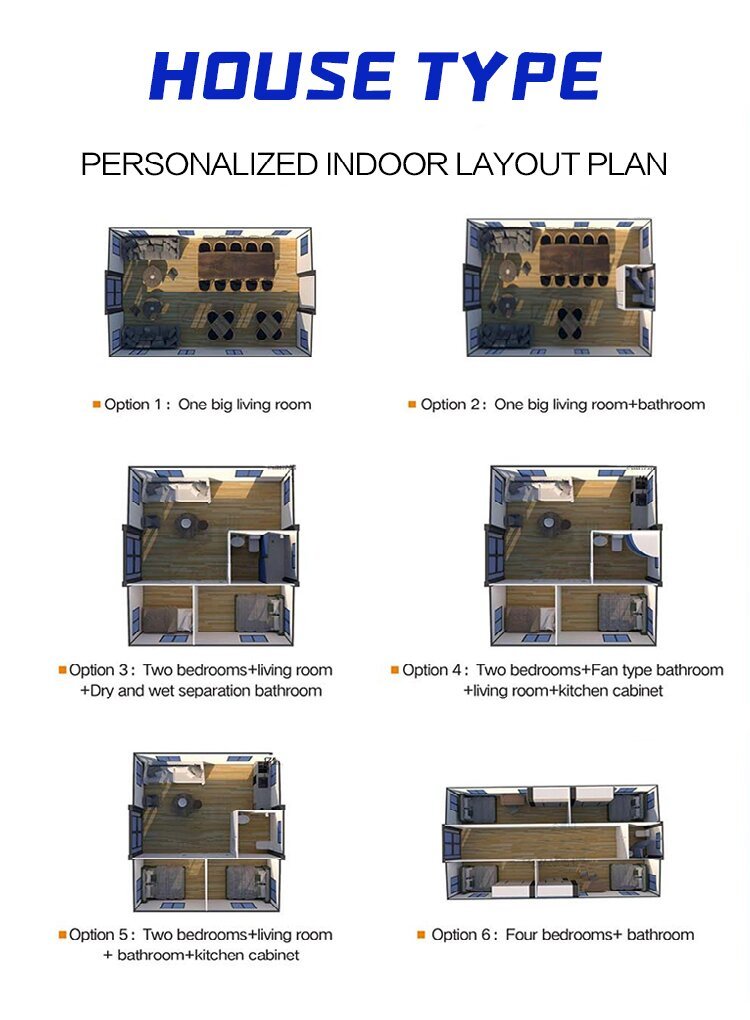

Internal design	free design
Standard	strictly follow ASTM, JIS, EN, DIN, GB and other international and domestic authoritative standards
Product life	more than 20 years
Transportation	sea transportation, 8 sets/1*40hq

Product Features:

1. Highly practical

The house has strong earthquake and wind resistance, good insulation effect, strong load-bearing capacity, can be combined and stacked for use, and the service life can reach more than 20 years.

2. Fast installation and easy transportation

Whether it is integrated or split transportation, it can be easily implemented to meet the needs of rapid deployment.

3. Wide application scenarios

There are no special requirements for the site, and it can be used immediately, saving a lot of time and cost.

4. Green and environmentally friendly

No construction waste is generated, which is in line with modern environmental protection concepts.

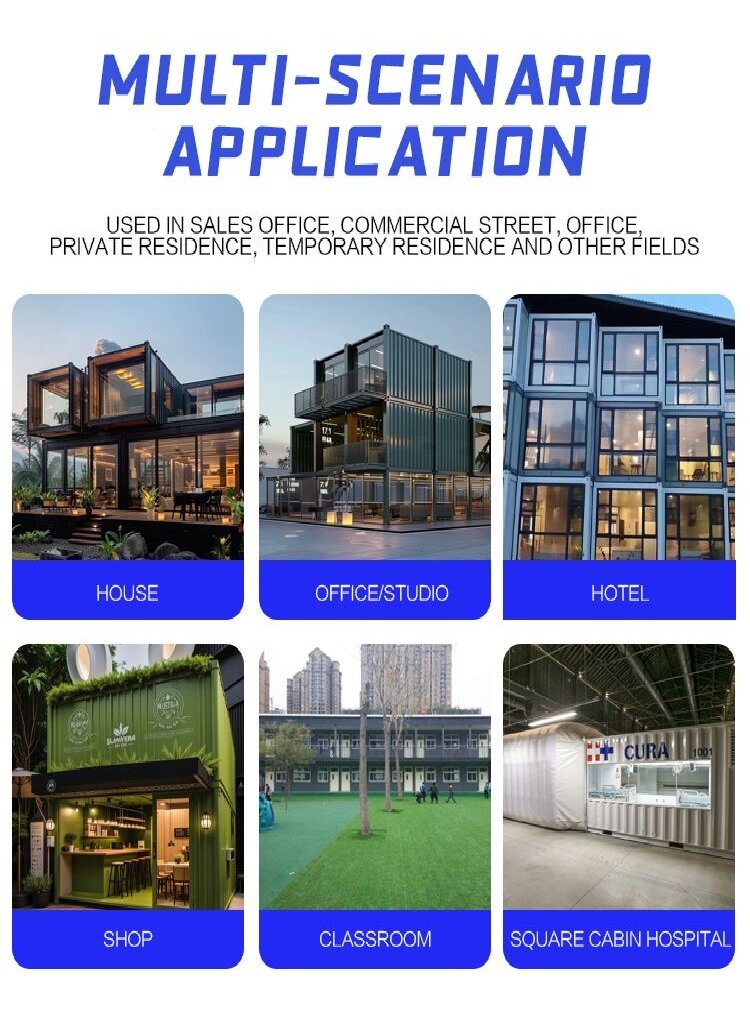

Application Scenarios:

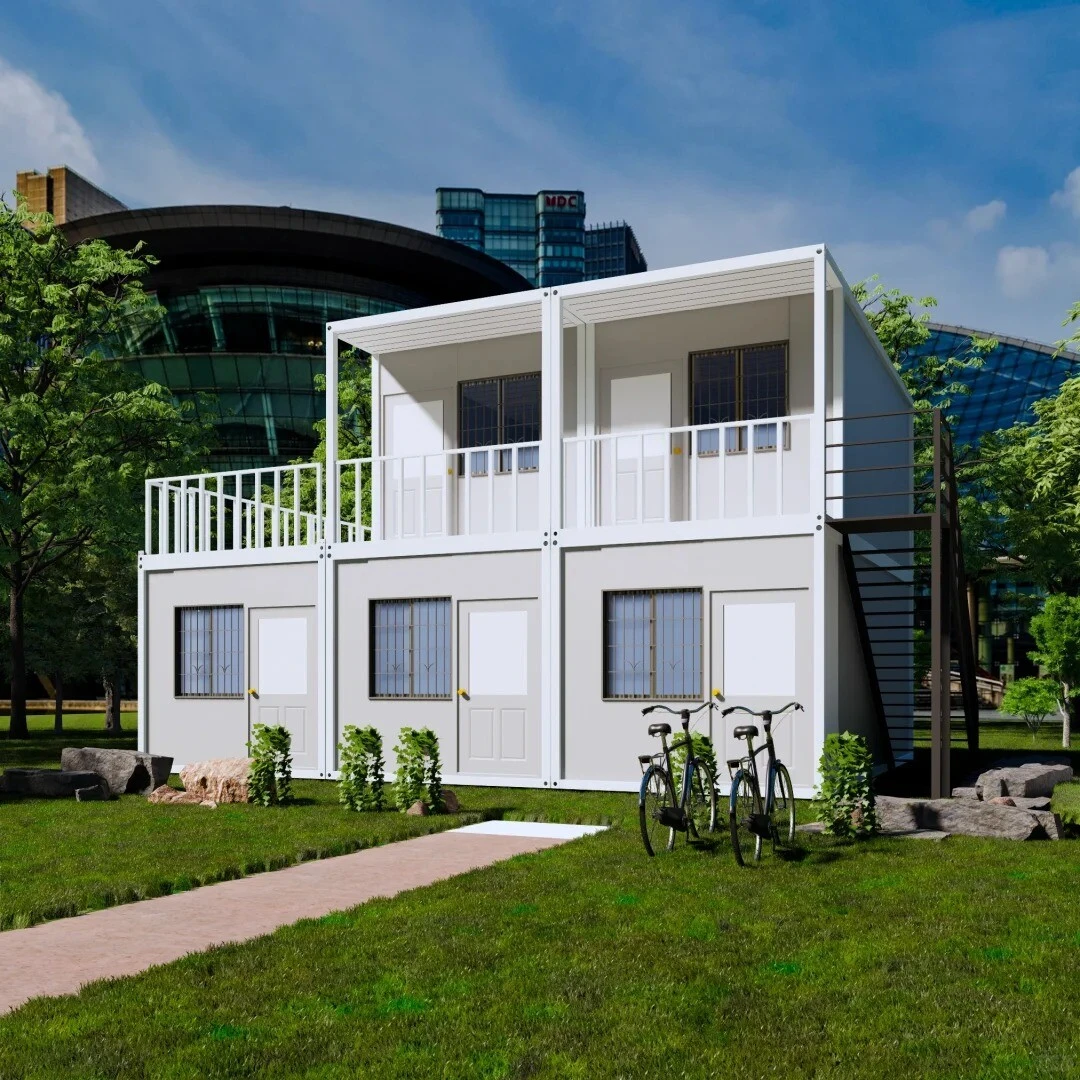

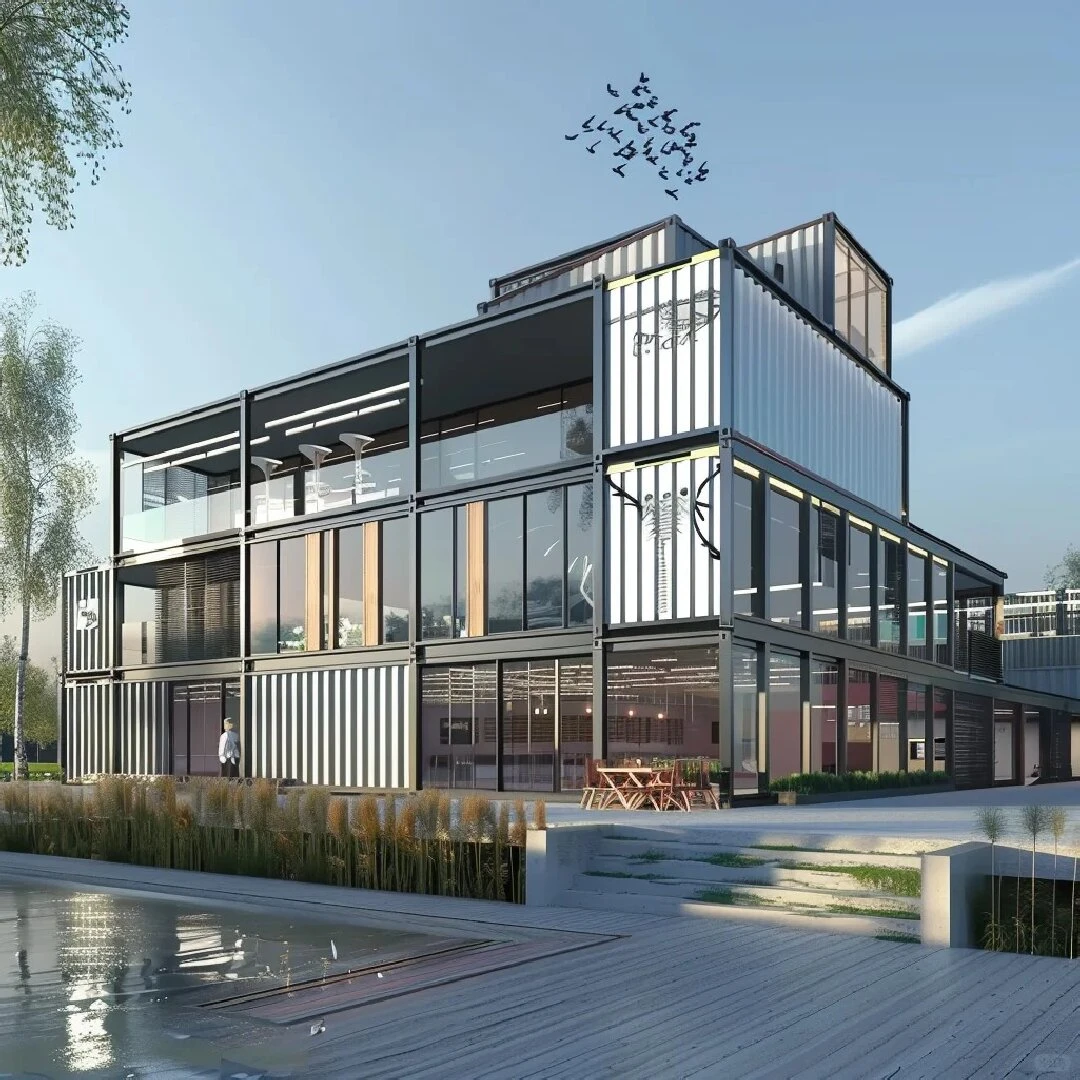

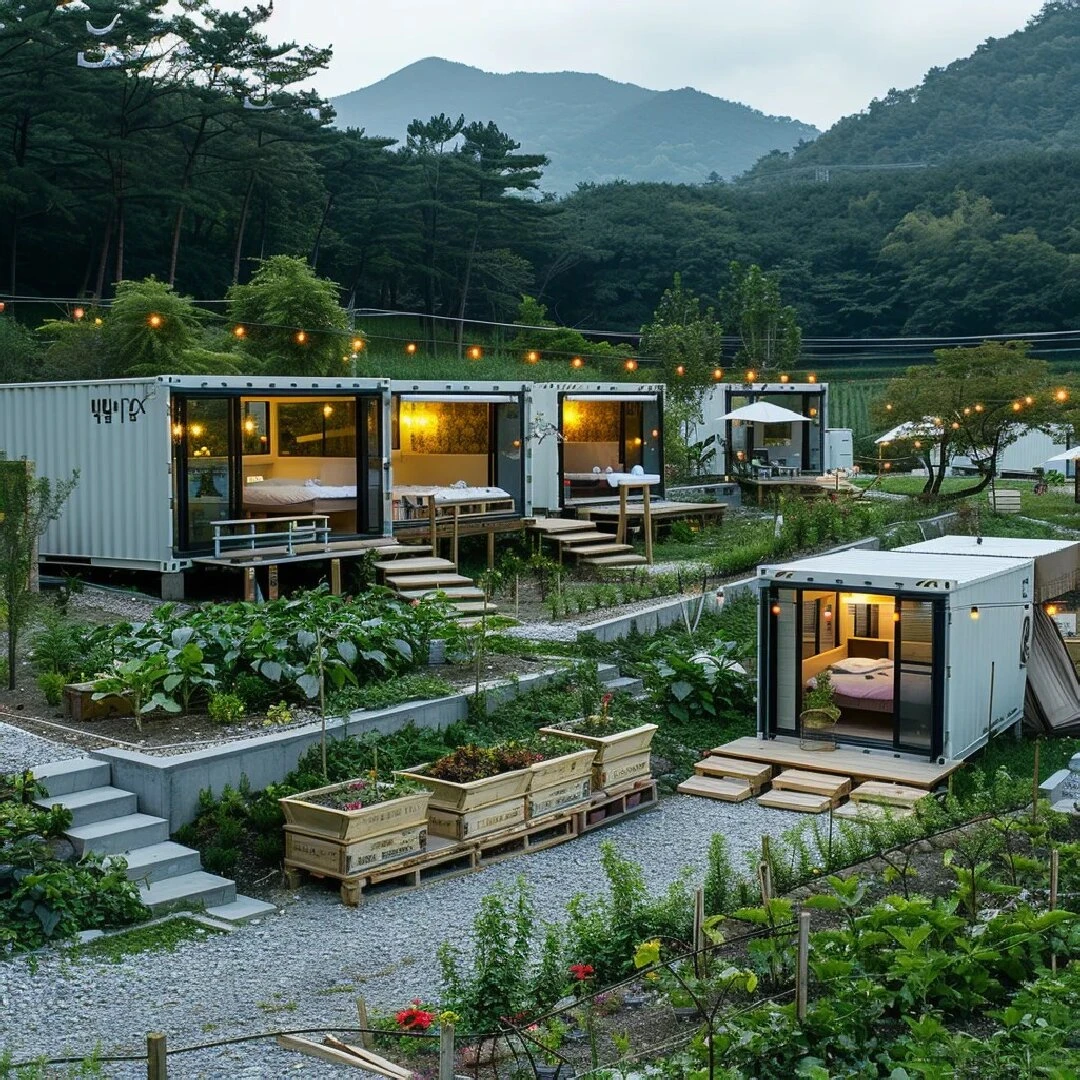

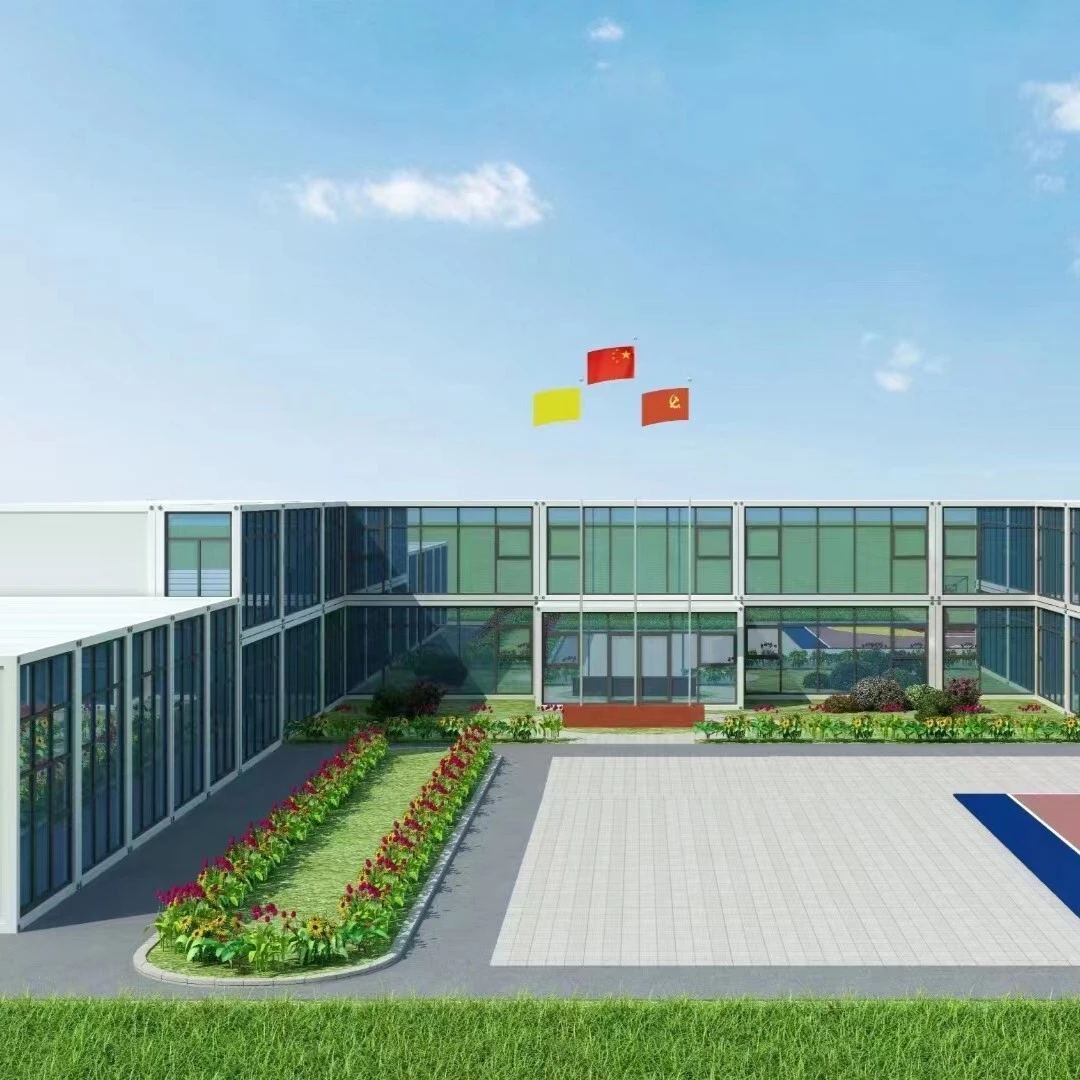

Residence/Office/Hotel/Shop/School/Hospital/Camping/etc

Z Type Foldable Container House
Size	Dimension(mm)	585024302540
	Inner Dimensions(mm)	564022902380
	Folding Size(Packing Size)(mm)	58502430580
Weight	NetWeight (kg)	1350kg
Style	Roof Design	Flat roof have 4pcs columns,internal drainage
	Layer	3 layers
	Floor load Capacity	2.0kN/M²
	Rroof load Capacity	0.5kN/M²
	Earthque Resistance Grade	8
	Wind Load	0.6kN/M²
	Hanging Head	GI steel thick 3.0mm size 210150160(mm)
	Column/Pillar(mm)	Thick 2.5mm *2pcs reinforcement ribs
	Roof Main Beam	180mm ,thick 2.5mm
	Roof Secondar Beam	80mm C type steel, thick 1.2mm
	Roof Water-proof	30301.2mm thick square tube 1pcs, 20201.2mm thick square tube 2pcs
	Floor Main Beam	160mm steel, thick 2.5mm
	Floor Second Beam	square steel tube size 50100mm thick 12mm 9pcs
Out Coating	White Power Electrostatic Spraying	Coating pencent above 80%
Roof Style	Top of Roof	White and gray color 0.4mm thick color steel 360 degree bite, special water proof method
	Roof Insulation	Grade A anti-fire,thick 50mm glass wool capacity 14 kg per square meter
	Ceiling Board	0.3mm thick 831 model GI with hide bolt
Floor	Deceration Plate	Class A thick is 18mm cement fabric board for base board and 1.6mm PVC leather sheet
Floor	Flood Tank	Water slide/channel
Wall	Wall Board Color	White gray, sndwich panel 950 model, double layers of orange peel pattern, the steel plate is 3 mm thick
Wall	Insulation ofWall	Capacity 50kg rock wool per square meter
Door&Windows	Steel door 9701970mm, window use double layer glass sliding type PVC steel window, mosquito screen size 9301130mm, double layer hollow glass sizes 3+5+3mm
Electric System	Voltage 220 V,main wire #6,air condition wire#4,socket wire #2.5,light wire #1 1 pc PVC distribution box,1 pc leakage protector,1 pc circuit break,1 pc industry socket,2 pc LED pencil ceiling light,1 pc 3-hole outlet,1 pc 5-hole outlet,1pc single switch
Parts	Whiteand gray GI Aluminium steel colorparts,3 pcs white gray color skirting line

Frequently Asked Questions (FAQ):

Q: What are the advantages of your factory?

A: We not only have a container house assembly factory, but also steel raw material production factories, which does not rely on procurement and saves purchase costs of material, more competitive prices and best after-dales service than other factory.

Q: How do you control quality?

A: Mill Test Certification is supplied with shipment, third Party Inspection is also available.

Q: What is your supply capacity?

A: 50 sets of container houses per day and 1,500 sets per month.

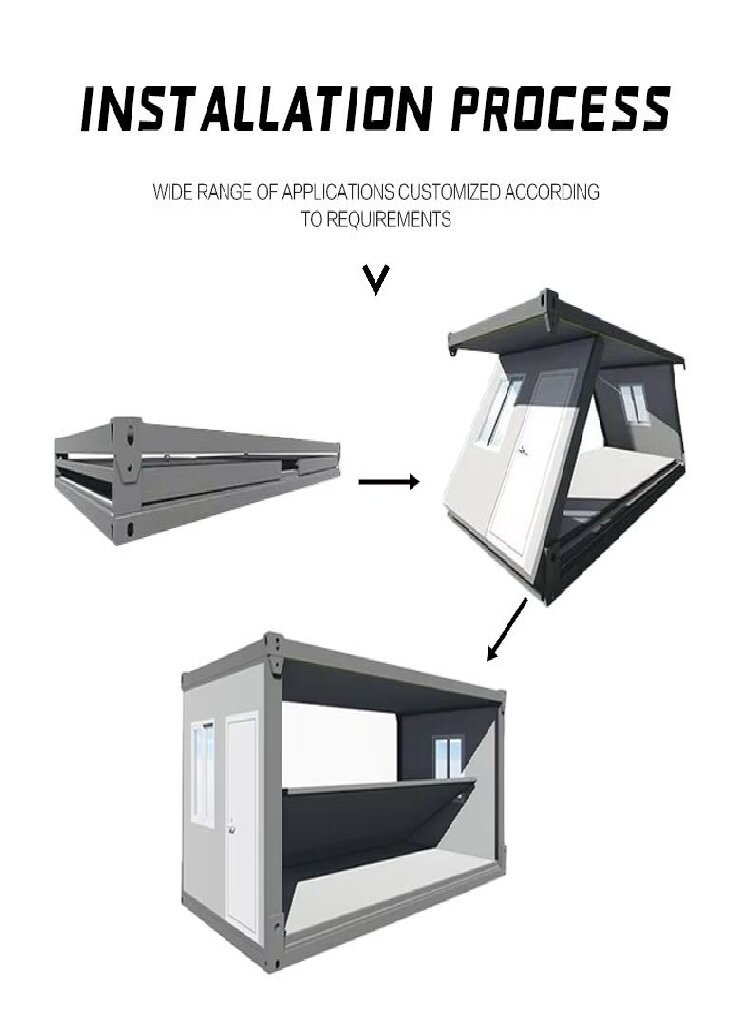

Q: How to install?

A: Instruction manual and video will be provided or online technical support installation instructions, to ensure that customers can complete the installation quickly and well.

Q: How long is your delivery time?

A: It depends on the order quantity and delivery destination, Please consult customer service to define specific time.

Q: How many coutries you already exported?

A: Exported to more than 50 countries mainly from North America, South America, Southeast Asia, Middle East, Africa, etc.

Want to choose the good quality container house for your project? Contact us today for professional advice, detailed quotes and attentive service. Our team of professionals look forward to working with you.
